KW 950E

Data Repeater, Heading, Rate of Turn, Log, Echo Sounder, NMEA 0183 interface.

KW950E gyro multipurpose interface. Great for VDR s-VDRThe simplicity, and versatility make the KW950 a delight to install. The case is DIN size for console or trunnion mount.

Use the KW950 whenever a Digital Repeater with Rate Of Turn Indicator is required. It is also LOW COST!

The instrument has been enhanced to give a large number of options selected by dip-switch (heading, speed, depth, echosounder, rudder angle, etc) but it still remains as simple as ever.

The KW950E BNWAS option turns it into a Bridge Navigation Watch Alarm System.

Excellent for s-VDR SVDR VDR

INPUT
DC Stepper six steps per degree 20 to 90v.
26/115 Volt 50-400 Hz synchro 1 rev/deg
90x 400 Hz Contactless transmitter
M-Type transmission
or NMEA 0183, Cetrek, Yokogawa, Robertson, SGB, GPS, Anschutz coursebus.
200 or 400 pulses per mile log.
Echo sounder transmit and receive pulses.
OUTPUT:
NMEA 0183 $HEHDT and $HEROT. 5 volt level via 47 ohms.
NMEA 0183, RS422, RS232 compatible. 5v.
Robertson SKR80. SGBrown, Anschutz coursebus, Yokogawa
Variable baud rates to 38.4KB.
Sentences delivered whenever heading changes and 1Hz or 10 Hz, even 50 Hz.
Furuno format clock and data.
GPS pass-through plus heading/speed mode.



KW950E for VDR s-VDR SVDR interfacing

POWER ETC:
9 to 35 Volts DC 2 W
144 x 72 x 146 DIN CASE
Panel or trunnion mount
Lift-off terminals

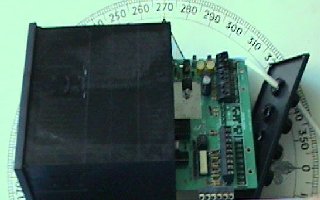

Slide out PCB to connect.
